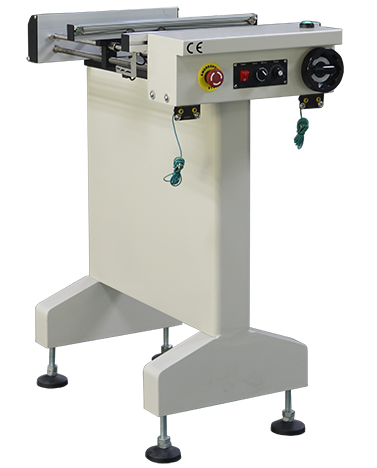

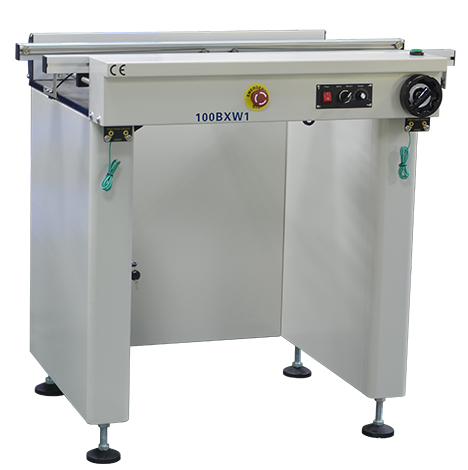

Linking Conveyors
All Metal Solid Design Linking Conveyor
By Pass and Inspection Mode
Stainless Steel Lead Screw Width Adjustment
Conveyor width adjustment by hand crank
Adjustable Speed Control
Controlled by PLC
Panasonic Sensor CX-422
4.8mm ESD Flat Belt
SMEMA compatible
CE compliance
Product Description
Application:
Linking Conveyors are used to link between SMD machines or PCB handling conveyors
Main Specifications:
| Conveyor Height: | 950 mm ± 30 mm (For SMT application) |
| Flow Direction: | Left to right (Optional Right to Left) |
| Fixed Rail: | Front (Optional rear rail fixed) |
| Component Clearance: | Bottom 30 mm (Or specify) |
| Conveyor Speed: | 1--12 m/min (Or specify) |
| PCB Edge Support: | 3 mm (Or specify) |
| Max PCB Width: | M-350mm, X-460mm |
| Machine Interface: | SMEMA |
| Power Supply: | AC220 ±10v, 50 Hz /110V ±10v, 60 Hz |
Order and Shipping Info:
|
Description
|
Linking Conveyors 500mm,600mm, M, X size
|
|||
|
Model No
|
050BXW1
|
060BXW1
|
050BMW1
|
060BMW1
|
|
Max PCB Size(LxW)
|
460x460mm
|
535x460mm
|
460x350mm
|
535x350mm
|
|
Machine Dimension(LxWxH)
|
500x750x900mm
|
600x750x900mm
|
500x650x900mm
|
600x650x900mm
|
|
Net Weight
|
34kgs
|
48kgs
|
30kgs
|
43kgs
|
|
Shipping Dimension(LxWxH)
|
650x900x1100mm
|
750x900x1100mm
|
650x800x1100mm
|
650x800x1100mm
|
|
Gross Weight
|
64kgs
|
80kgs
|
58kgs
|
71kgs
|
Options:
Safety Cover, Option Part Number: SC014-500mm, SC015-600mm
Cooling Fan, Option Part Number: CF016-, 4 fans,
Line Central Auto Width Adjustment, Option Part Number: AW017-Linking Conveyor
Change from ESD Flat Belt to Pin Chain Conveyor, Option Part Number: PC018-500mm, PC019-600mm
Extra Segment, Option Part Number: ES020
