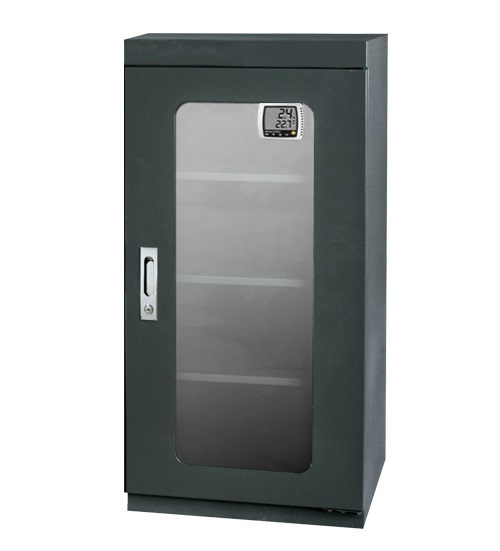

A5-157

Model No: A5-157-220 ( 220V), A5-157-110 ( 110V)
A5: Ultra Low ≤5%RH
Turbo Dryer Qty: 2 pcs
Shelves: 2 shelves

Capacity: 165L
Internal Size: 448x 425x 870mm (W x D x H)
External Size: 450x 452x 1045mm (W x D x H)
Shelf Size: 405x310x20 mm (W x D x H)
Power Consumption: Ave. 55Wh; Max: 295W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts

Product Description

Features:

When IC packages are stored in a dry box at 5%RH or lower, the floor life is indefinite!

1. Plug and play—no installation required

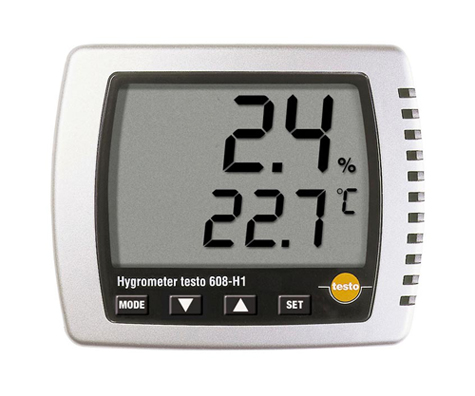

2. German brand Testo digital read-out displays temperature and humidity level

3. Desiccant automatically regenerates, desiccant level to be continuously maintained

4. Shelves capacity 45 kilos each

5. 2 anti-static wheels with brakes, 2 standard wheels

6. Anti-static paint and glass

7. Compression handles and airtight magnetic sealers

8. Recommended for MSD4, 5, 5a ultra low humidity storage.

Applications:

IC package :Low-humidity storage of IC packages (MSD) which have been removed from moisture barrier bags.
Low-humidity storage of MSDs before and leftover after implementation.
Low-humidity storage of MSDs that hve been removed from mounter.
Low-humidity storage of MSDs when writing ROMs.
PCB: Dry storage of semi-mounted PCBs. Effective low-humidity storage of PCBs awaiting second-side reflow.
Drying and storing multilayer PC boards before and after the mounting process.
Dry storage of pattern film and prepreg used in the manufacturing of PCBs.

Shipping Information:
Plywood Crate Dimension: : Approx. 630 x 632 x 1240mm (W x Dx H)

Gross Weight: Approx. 67.5 kgs
