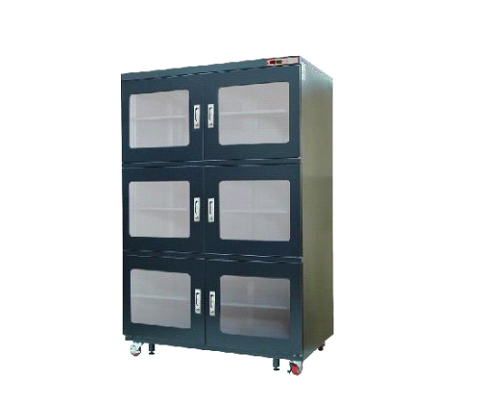

Q-1490
Model No: Q-1490-220 ( 220V),Q-1490-110 ( 110V)
Q: Display 1.0-99.9%RH
Turbo Dryer Qty: 4 pcs
Shelves: 5 shelves
Capacity: 1250L
Internal Size: 1198x 645x 1618mm (W x D x H)
External Size: 1200x 672x 1820mm (W x D x H)
Shelf Size: 1155x530x20mm (W x D x H)
Power Consumption: Ave. 48.6Wh; Max: 145W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
Product Description
Hot Features:

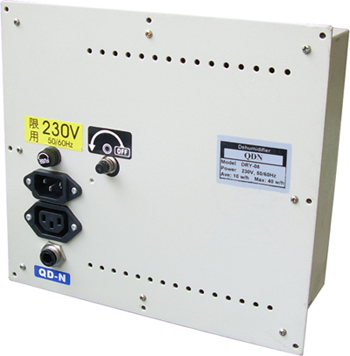

Low cost ownership: By using nitrogen saving device QDN, When the humidity reaches the set value, it will cut off the nitrogen supply automatically. When it is more than the set value, it will intelligently turn on the nitrogen supply. This design could save 70% nitrogen consumption comparing with others.
Low cost ownership: By using nitrogen saving device QDN, When the humidity reaches the set value, it will cut off the nitrogen supply automatically. When it is more than the set value, it will intelligently turn on the nitrogen supply. This design could save 70% nitrogen consumption comparing with others.
Features:
1. Plug and play—no installation required
2. Digital read-out displays temperature and humidity level
3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
7. Compression handles and airtight magnetic sealers

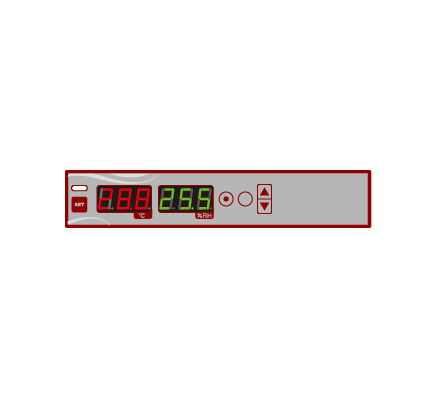

8. LED control panel
Option:
stainless steel cabinet for clean room application
Shipping Information:
Crated Dimensions: Approx.1380x852 x 2015mm (WxDxH)
Gross Weight: Approx. 227 kilos
Gross Weight: Approx. 227 kilos
