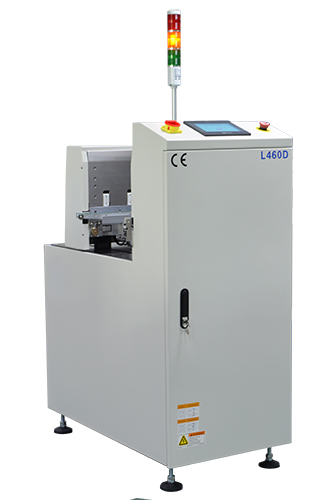

Bare Board Destacker
Large stack of PCB capacity
Pass-Through Function
Controlled by PLC
SMC Cylinder as Pusher
9" HMI Display
Panasonic Sensor CX-422
2.5mm ESD Flat Belt
Pre-warning Low Stack Sensor
Short PCB Cycle Time
3-Color Light Tower and Audible Alarm
SMEMA Compatible
CE compliance
Product Description
Application:
Bare Board Destacker top loads a 200mm stack of unpopulated PCB’s to introduce to a SMT production line.
Main Specifications:
| Conveyor Height: |
950 ± 30 mm (For SMT application)
|
| Flow Direction: | Left to right (Optional Right to left) |
|
Fixed Rail:
|
Front (Optional rear rail fixed)
|
|
PCB Thickness:
|
0.6 mm - 4 mm
|
| Stack Height: | 200 mm |
| PCB Cycle Time: | ± 10 seconds |
| Conveyor Speed: | 1-15m/min adjustable |
| Machine Interface: | SMEMA |
|
Power Supply:
|
AC220 ±10v, 50Hz /110V ±10v, 60Hz
|
|
Air Supply:
|
5~6 kg/cm² (4~6 bar)
|
Order and Shipping Info:
|
Description
|
Bare Board Destacker 350mm,400mm,460mm
|
||
|
Model No
|
L350D
|
L400D
|
L460D
|
|
Max PCB Size(LxW)
|
535x350mm
|
535x400mm
|
535x460mm
|
|
Machine Dimension(LxWxH)
|
600x850x1250mm
|
600x900x1250mm
|
600x960x1250mm
|
|
Net Weight
|
170kgs
|
175kgs
|
180kgs
|
|
Shipping Dimension(LxWxH)
|
750x1000x1450mm
|
750x1050x1450mm
|
750x1100x1450mm
|
|
Gross Weight
|
220kgs
|
223kgs
|
233kgs
|
Options:
Safety Cover, Option Part Number: SC001
Line Central Auto Width Adjustment, Option Part Number: AW002
Other options available on request
