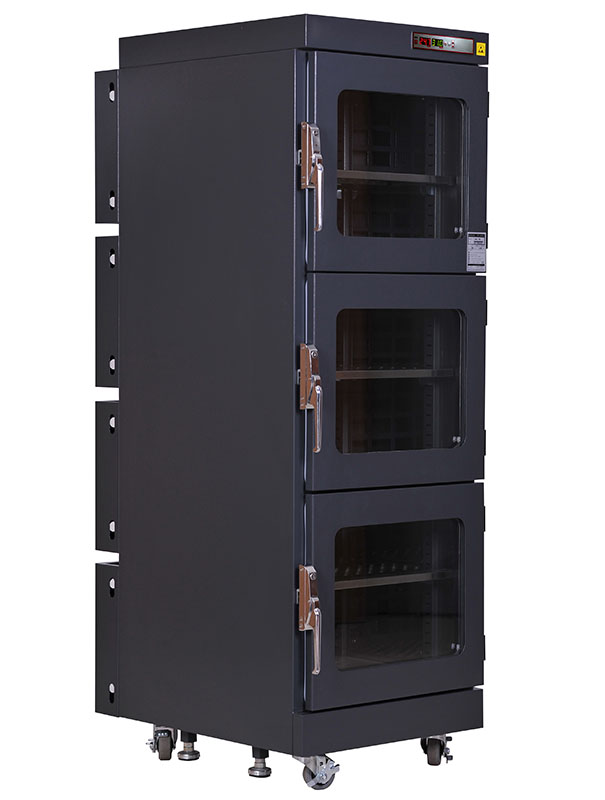

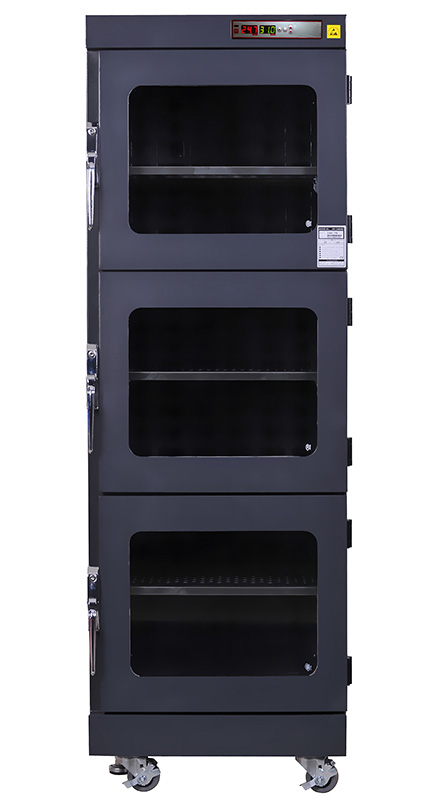

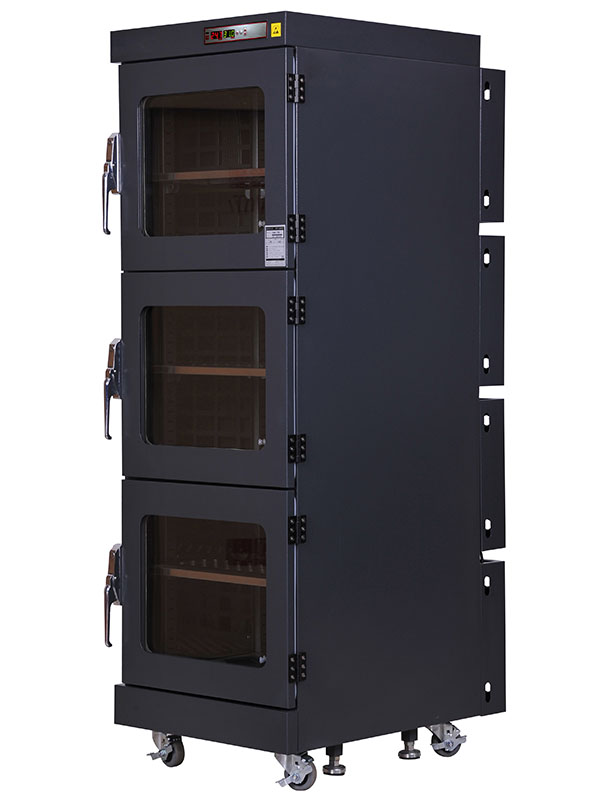

T40-790

Model No: T40-790-220 ( 220V), T40-790-110 ( 110V)

T40: Hot-bake at 40 ±2°C, ≤5%RH

Heating Module Qty: 2 pcs

Turbo Dryer Qty: 2 pcs

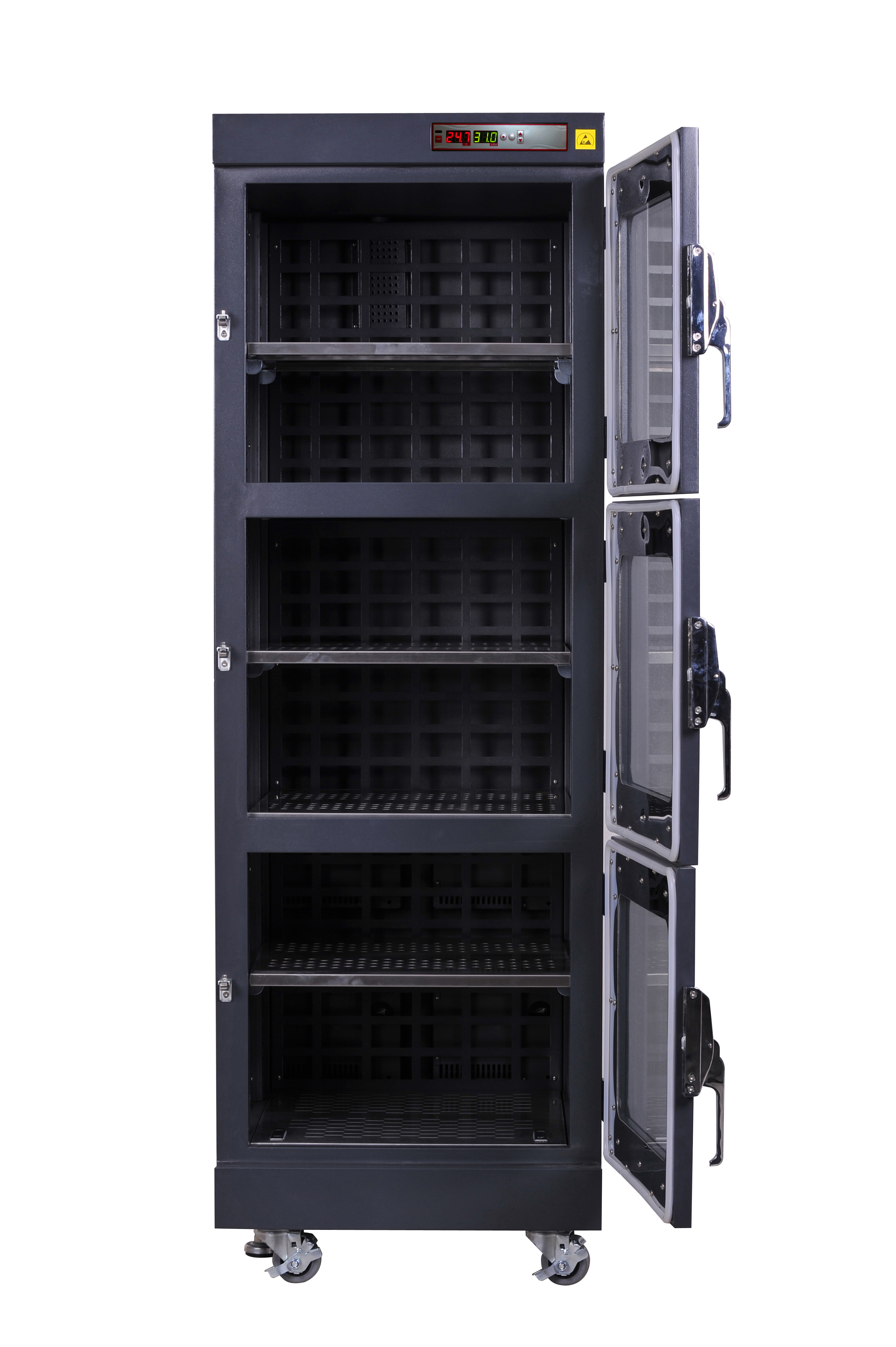

Shelves: 5 shelves

Capacity: 466L

Internal Size: 544x 576x 1487mm (W x D x H)

External Size: 600x 840x 1820mm (W x D x H)

Shelf Size: 502x522x20 mm (W x D x H)

Power Consumption: Ave. 300Wh; Max: 600W

Grounding Wire: 1MΩ. (940mm long)

ESD Paint: 103~109 Ω (surface resistance)

Structure: 1mm thick carbon steel with antistatic paint

Warranty: 2 years parts

Product Description

Applications:
According to J-STD-033B , Moisture sensitivity SMD packages which are exposed to the air and exceed the floor life should be baked at 40°C and stored in <5%RH ambient to reset their floor life (see J-STD-033B table 4-1, 4-3). Our T40 is especially designed to fit for this requirement.

For example: If MSD parts Level 4,5 and 5a are exposed to the air for less than 8 hours, they should be stored in a dry cabinet to reset their floor life. However, if their exposure time is longer than 8 hours, the SMD packages must store at 40°C baking machine to reset the floor life to zero.

Features:

1. Plug and play—no installation required

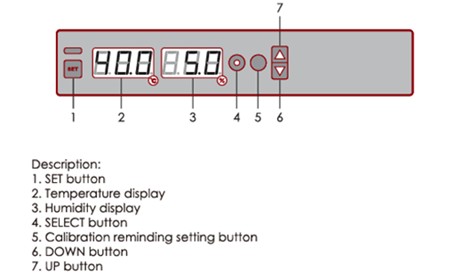

2. Digital read-out displays temperature and humidity level

3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass

7. Compression handles and airtight magnetic sealers

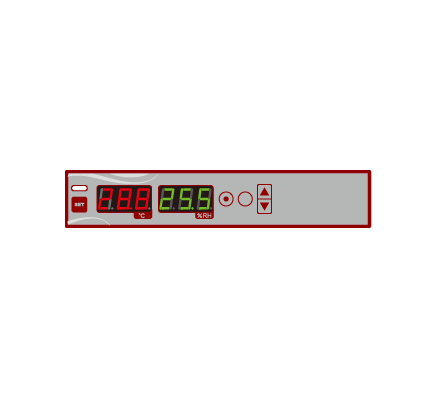

8. LED control panel

Shipping Information:
Crated Dimensions: Approx. 730x 980x 1995mm (WxDxH)
Gross Weight: Approx. 213.5 kilos
Net Weight: Approx. 185 kilos
