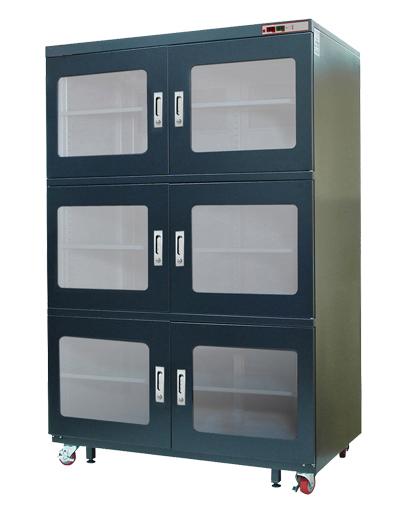

X1-1490
Model No: X1-1490-220 ( 220V), X1-1490-110 ( 110V)
X1: Adjustable 1-50%RH
Turbo Dryer Qty: 4 pcs
Shelves: 5 shelves
Capacity: 1250L
Internal Size: 1198x 645x 1618mm (W x D x H)
External Size: 1200x 672x 1820mm (W x D x H)
Shelf Size: 1155x530x20mm (W x D x H)
Power Consumption: Ave. 105Wh; Max: 585W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
Product Description
Applications:
Electronics,
photo-electronic material,
Laboratory grade dry cabinets for storage of lab materials and samples biotech, physical, chemical & medical materials.
photo-electronic material,
Laboratory grade dry cabinets for storage of lab materials and samples biotech, physical, chemical & medical materials.
Especially suitable for the storage of water solutions and microscope lenses.
Extremely easy to use, X1 dry cabinet is ideal for the moisture-proof and anti-oxidation storage of diverse technologies. The cabinet is also fully compliant with IPC/JEDEC J-STD-033B.
Features:
1. Plug and play—no installation required

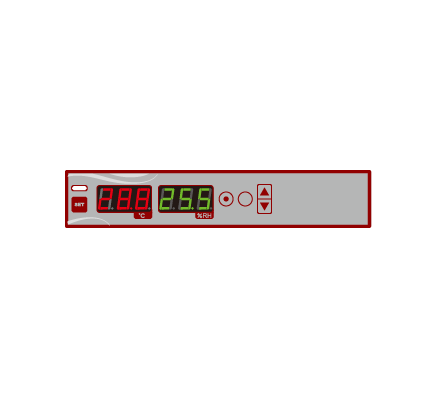

2. Digital read-out displays temperature and humidity level
3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
7. Compression handles and airtight magnetic sealers, 3 doors

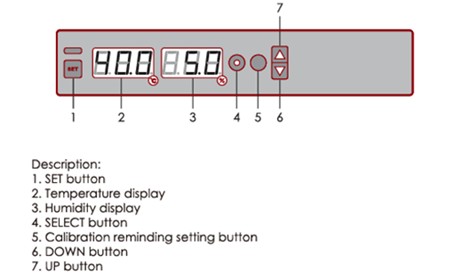

8. LED control panel
Order & Shipping Information
Crated Dimensions: Approx.1380x852 x 2015mm (WxDxH)
Gross Weight: Approx. 227 kilos
Gross Weight: Approx. 227 kilos
