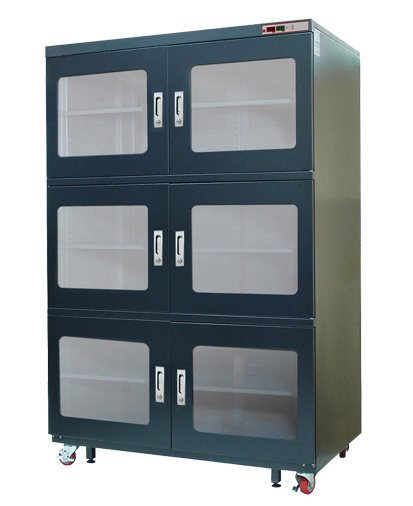

X20-1490
Model No: X20-1490-220 ( 220V), X20-1490-110 ( 110V)
X20: Adjustable 20-50%RH
Turbo Dryer Qty: 4 pcs
Shelves: 5 shelves
Capacity: 1250L
Internal Size: 1198x 645x 1618mm (W x D x H)
External Size: 1200x 672x 1820mm (W x D x H)
Shelf Size: 1155x530x20mm (W x D x H)
Power Consumption: Ave. 105Wh; Max: 585W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
Product Description
Applications:
Optical fiber (micro-lens for WDM) and CCD (charge-coupled device)
Optical fiber (micro-lens for WDM) and CCD (charge-coupled device)
microscope lenses, chemicals
Features:
1. Plug and play—no installation required
2. Digital read-out displays temperature and humidity level
3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
7. Compression handles and airtight magnetic sealers

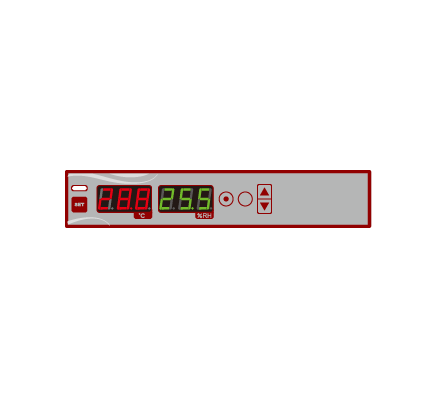

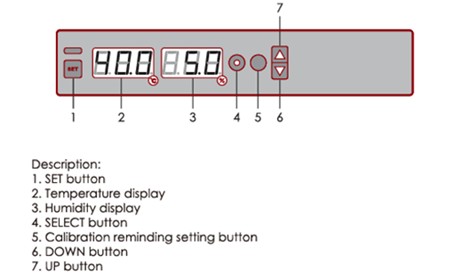

8. LED control panel
Order & Shipping Information
Crated Dimensions: Approx.1380x852 x 2015mm (WxDxH)
Gross Weight: Approx. 227 kilos
