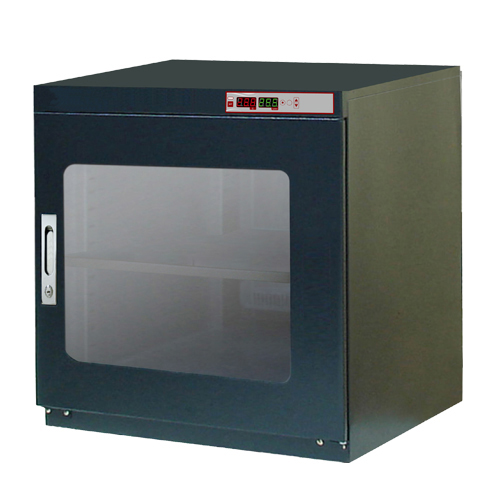

X20-290
Model No: X20-290-220 ( 220V), X20-290-110 ( 110V)
X20: Adjustable 20-50%
Turbo Dryer Qty: 2 pcs
Shelves: 2 shelves
Capacity: 202L
Internal Size: 598x 645x 524mm (W x D x H)
External Size: 600x 672x 642mm (W x D x H)
Shelf Size: 555x530x20 mm (W x D x H)
Power Consumption: Ave. 55Wh; Max: 295W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
Product Description
Applications:
Optical fiber (micro-lens for WDM) and CCD (charge-coupled device)
Optical fiber (micro-lens for WDM) and CCD (charge-coupled device)
microscope lenses, chemicals
Features:
1. Plug and play—no installation required
2. Digital read-out displays temperature and humidity level
3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
7. Compression handles and airtight magnetic sealers, 3 doors

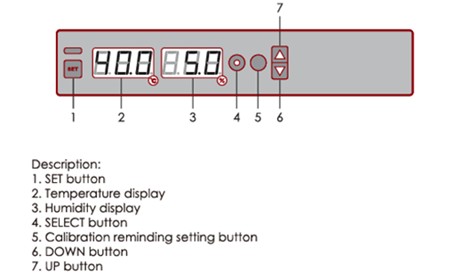

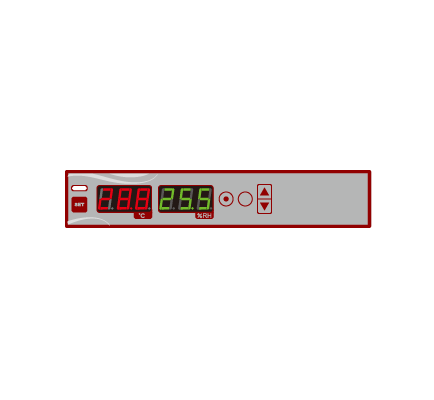

8. LED control panel
Order & Shipping Information
Crated Dimensions: : Approx. 780x852 x 922mm (WxDxH)
Gross Weight: Approx. 77 kilos
Gross Weight: Approx. 77 kilos
Net Weight: Approx. 41 kilos
