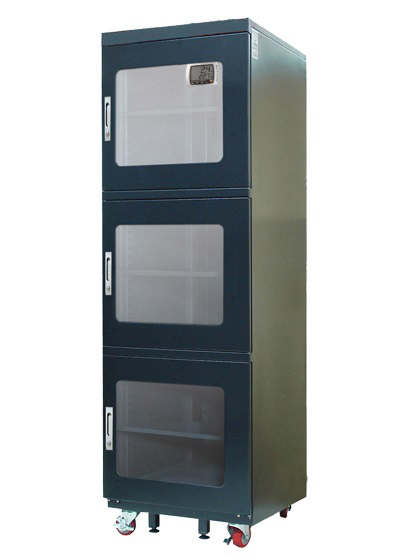

A5-790
Model No: A5-790-220 ( 220V), A5-790-110 ( 110V)
A5: Ultra Low ≤5%RH
Turbo Dryer Qty: 2 pcs
Shelves: 5 shelves
A5: Ultra Low ≤5%RH
Turbo Dryer Qty: 2 pcs
Shelves: 5 shelves
Capacity: 624L
Internal Size: 598x 645x 1618mm (W x D x H)
External Size: 600x 672x 1820mm (W x D x H)
Shelf Size: 555x530x20 mm (W x D x H)
Power Consumption: Ave. 55Wh; Max: 295W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
External Size: 600x 672x 1820mm (W x D x H)
Shelf Size: 555x530x20 mm (W x D x H)
Power Consumption: Ave. 55Wh; Max: 295W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
Product Description
Features:
When IC packages are stored in a dry box at 5%RH or lower, the floor life is indefinite!
1. Plug and play—no installation required

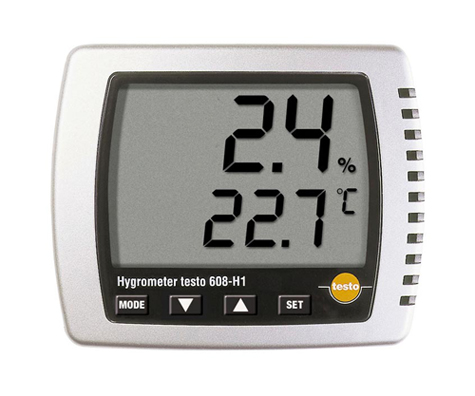

2. German brand Testo digital read-out displays temperature and humidity level
3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
7. Compression handles and airtight magnetic sealers
8. Recommended for MSD4, 5, 5a ultra low humidity storage.
1. Plug and play—no installation required
2. German brand Testo digital read-out displays temperature and humidity level
3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
7. Compression handles and airtight magnetic sealers
8. Recommended for MSD4, 5, 5a ultra low humidity storage.
Applications:
IC package :Low-humidity storage of IC packages (MSD) which have been removed from moisture barrier bags.
Low-humidity storage of MSDs before and leftover after implementation.
Low-humidity storage of MSDs that hve been removed from mounter.
Low-humidity storage of MSDs when writing ROMs.
PCB: Dry storage of semi-mounted PCBs. Effective low-humidity storage of PCBs awaiting second-side reflow.
Drying and storing multilayer PC boards before and after the mounting process.
Dry storage of pattern film and prepreg used in the manufacturing of PCBs.
IC package :Low-humidity storage of IC packages (MSD) which have been removed from moisture barrier bags.
Low-humidity storage of MSDs before and leftover after implementation.
Low-humidity storage of MSDs that hve been removed from mounter.
Low-humidity storage of MSDs when writing ROMs.
PCB: Dry storage of semi-mounted PCBs. Effective low-humidity storage of PCBs awaiting second-side reflow.
Drying and storing multilayer PC boards before and after the mounting process.
Dry storage of pattern film and prepreg used in the manufacturing of PCBs.
Shipping Information:
Crated Dimensions: Approx. 780x852 x 2015mm (WxDxH)
Gross Weight: Approx. 152 kilos
Gross Weight: Approx. 152 kilos
