![](/upload/20190412220226163.jpg)

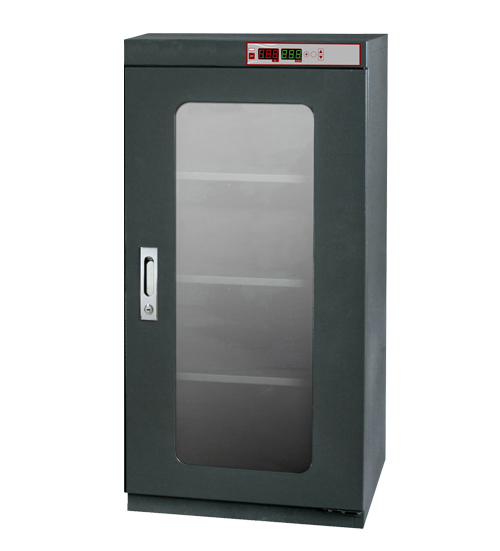

X20-157
Model No: X20-157-220 ( 220V), X20-157-110 ( 110V)
X20: Adjustable 20-50%RH
Turbo Dryer Qty: 2 pcs
Shelves: 2 shelves
X20: Adjustable 20-50%RH
Turbo Dryer Qty: 2 pcs
Shelves: 2 shelves
Capacity: 165L
Internal Size: 448x 425x 870mm (W x D x H)
External Size: 450x 452x 1045mm (W x D x H)
Shelf Size: 405x310x20 mm (W x D x H)
Power Consumption: Ave. 55Wh; Max: 295W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
Internal Size: 448x 425x 870mm (W x D x H)
External Size: 450x 452x 1045mm (W x D x H)
Shelf Size: 405x310x20 mm (W x D x H)
Power Consumption: Ave. 55Wh; Max: 295W
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 103~109Ω. (surface resistance)
Structure: 1mm thick carbon steel with antistatic paint
Warranty: 2 years parts
Product Description
Applications:
Optical fiber (micro-lens for WDM) and CCD (charge-coupled device)
Optical fiber (micro-lens for WDM) and CCD (charge-coupled device)
microscope lenses, chemicals
Features:
1. Plug and play—no installation required

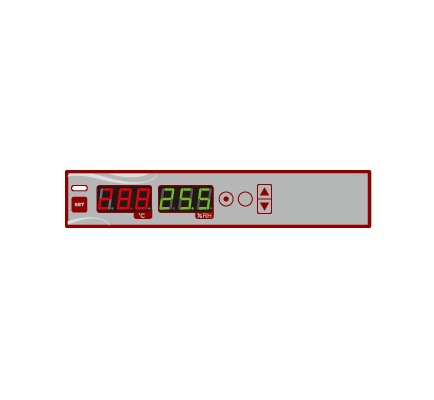

2. Digital read-out displays temperature and humidity level
3. Desiccant automatically regenerates, desiccant level to be continuously maintained
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
4. Shelves capacity 45 kilos each
5. 2 anti-static wheels with brakes, 2 standard wheels
6. Anti-static paint and glass
7. Compression handles and airtight magnetic sealers, 3 doors

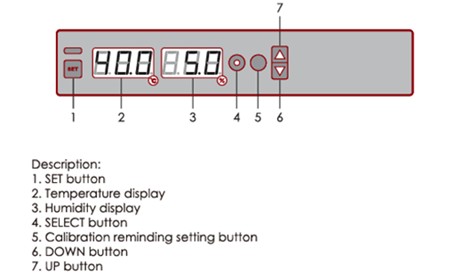

8. LED control panel
Shipping Information
Crated Dimensions: Approx. 630mm L x632mm W x 1240mm H
Gross Weight: Approx. 67.5kgs
Gross Weight: Approx. 67.5kgs
